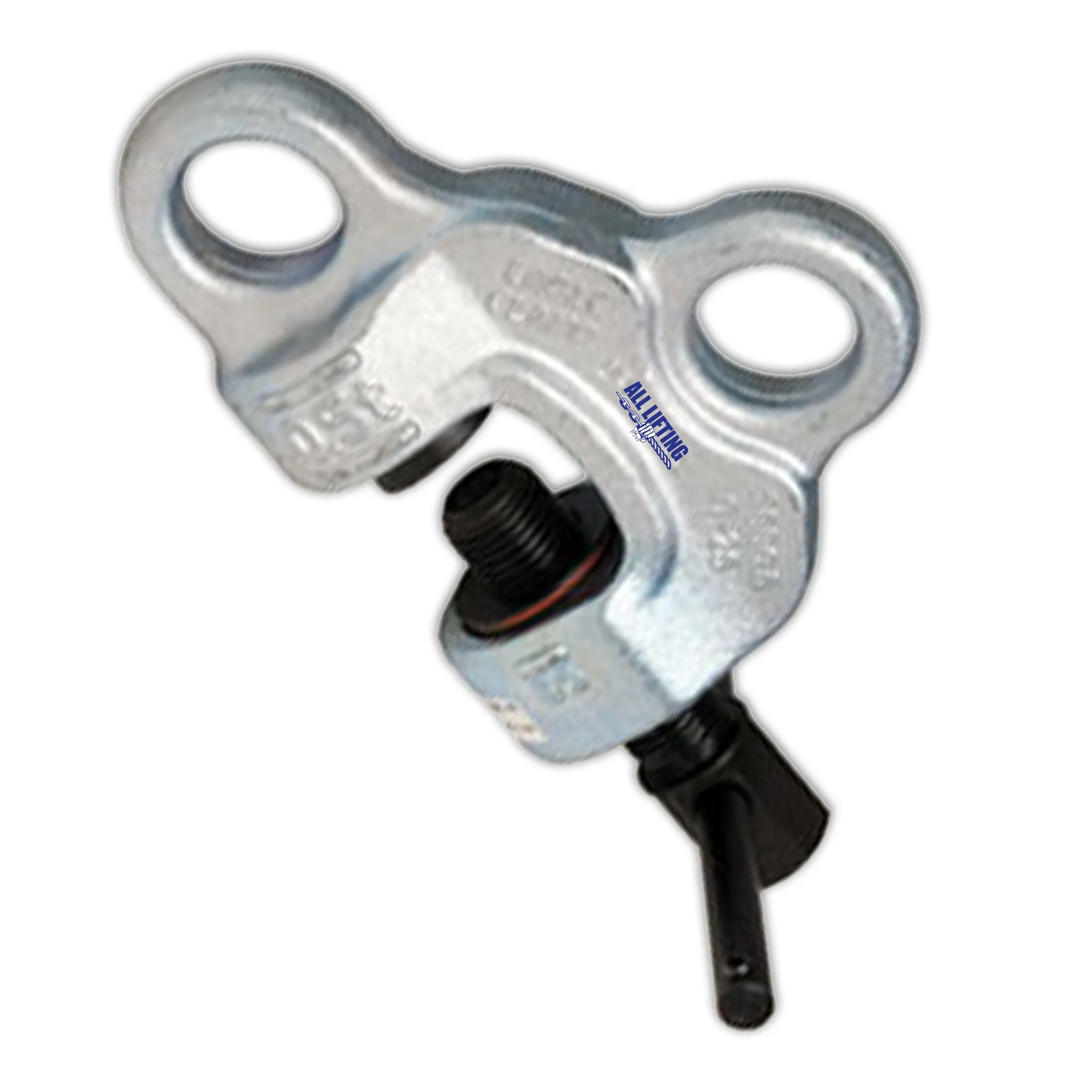

This patented SBBA Series Multi-Directional Lifting Screw Clamp has been consistently used for steel plates up to Hv600. The unique feature of this multi-directional screw clamp is that it gives you two levels of security thanks to its double safety feature. It includes a screw type vice and automatic spring type pressure locking device in one convenient product.
Features
- Patented 'torque confirmation device' (visible red ring indicated when tightening force is achieved)
- Suitable for most bisalloy steel (up to Hv600)
- spring type pressure locking device
- Twin shackle allows for movement in any direction
- Double safety feature with screw type vice and automatic clamping mechanism
- Clamp screw, edge pad and swivel jaw made of induction hardened, alloy steel
- For steel plates with a higher hardness range
- Tightening force on SBBA must be minimum 300kgf-cm
- Manufactured in Japan
- Applications: lifting, moving steel plates
- Complies to AS 4991
